Warp Labs ELRS Flight Controller

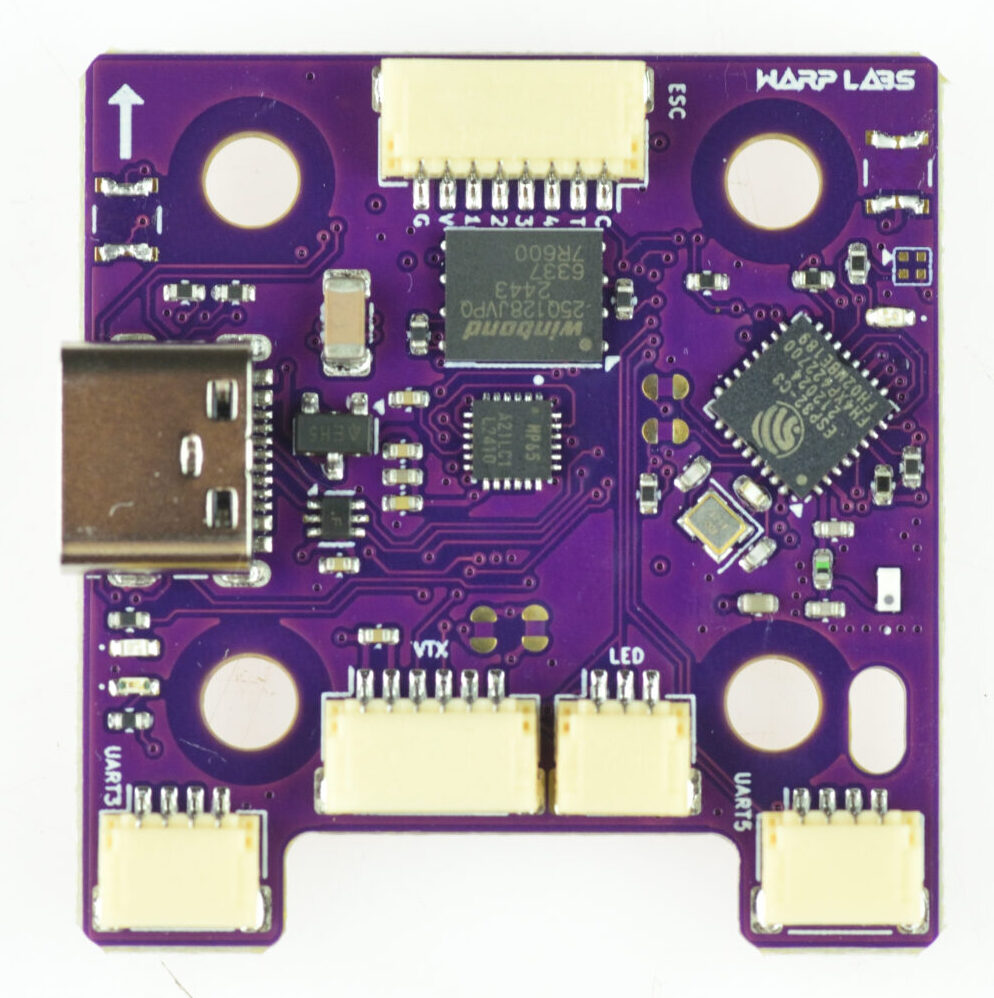

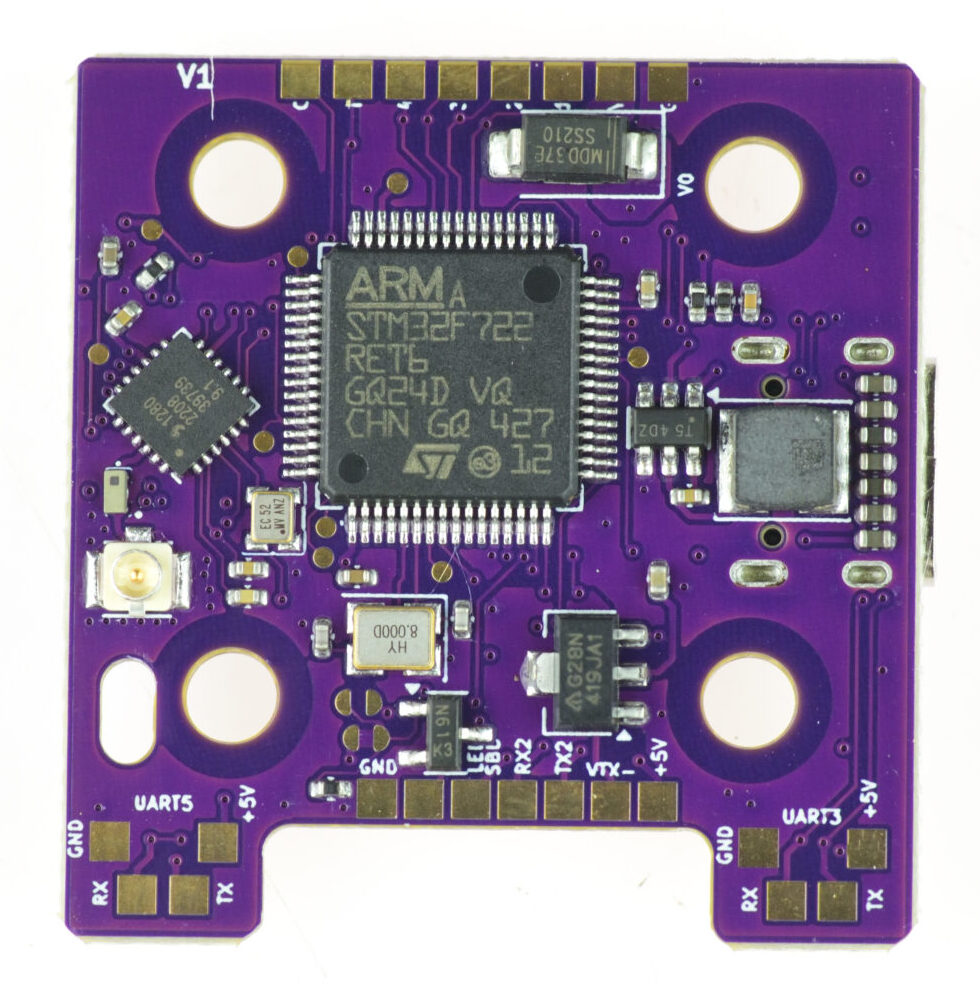

Warp Labs V1 Racing is a high-performance flight controller in a compact 20x20mm standard form factor, designed for elite FPV racing.
It features a seamlessly integrated ExpressLRS receiver, delivering ultra-low latency RC commands ensuring razor-sharp control and unmatched responsiveness
just what top racing pilots demand.
Features

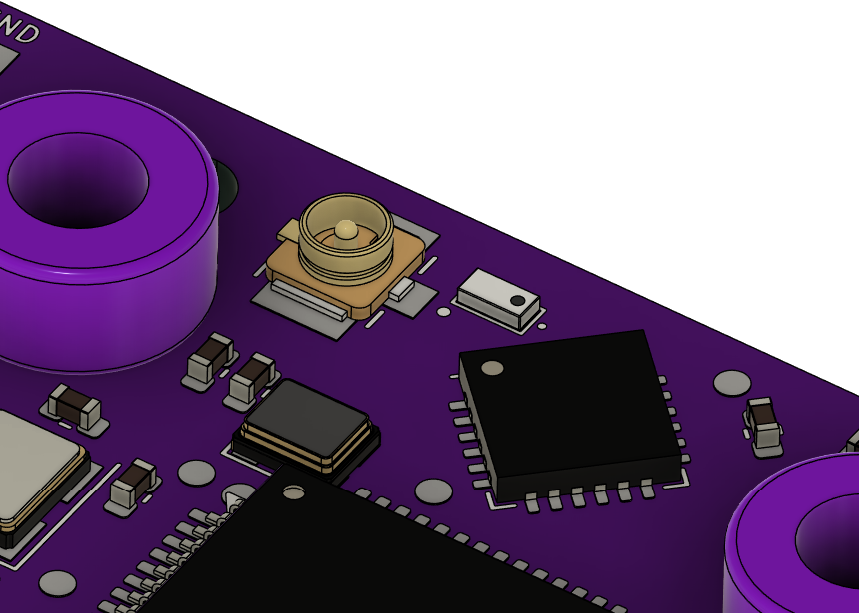

Embedded EXPRESS ELRS 2.4GHz Receiver
Embedded in the flight controller is a full-featured ExpressLRS 2.4GHz UART receiver, powered by an ESP32C3 CPU and an SX1280 radio chip. It also features a TCXO (Temperature-Compensated Crystal Oscillator) and a 2.4GHz bandpass filter, ensuring a rock-solid, high-performance link for your racing quad delivering maximum reliability and precision when every millisecond counts.

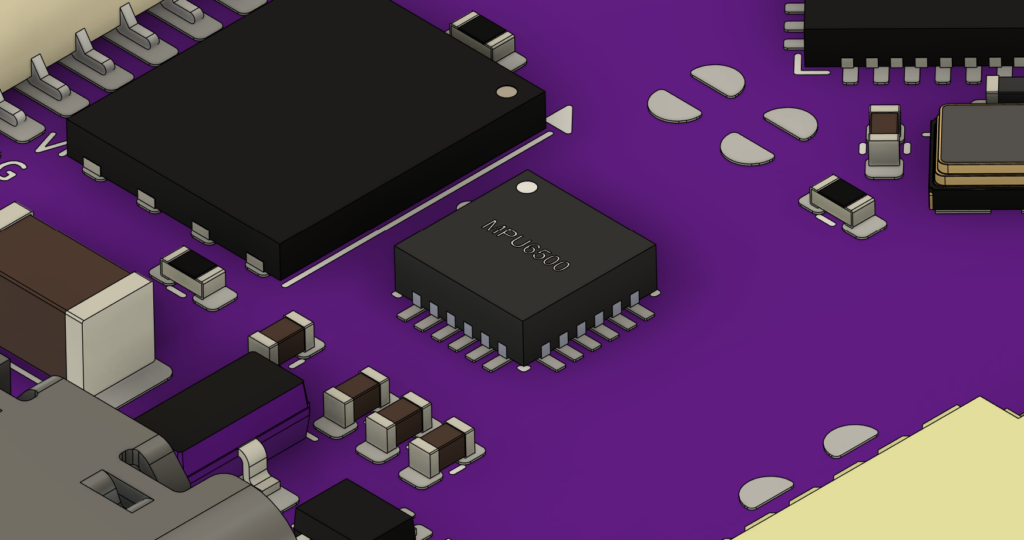

MPU 6500
At the core of this flight controller lies the MPU6500 Inertial Measurement Unit (IMU), delivering top-tier performance on par with the legendary, but discontinued, MPU6000. Still skeptical? Check the comparison graphs and see the proof for yourself.

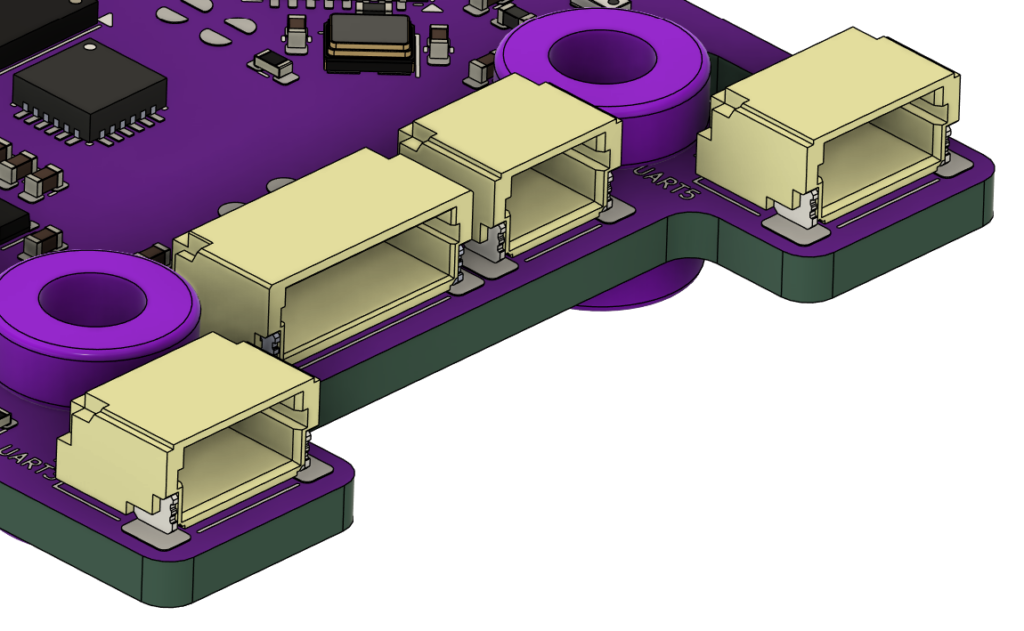

Plug & Play
The WPL V1 Racing is engineered for effortless builds and quick swaps. With dedicated connectors for ESC, HD VTX, LEDs, and UARTs, there’s no need for tedious soldering. When you're in the pits and need a rapid replacement, just plug and play—saving you time, hassle, and stress when it matters most. No worries on the bottom of the flight controller, you'll find backup pads that won’t get ripped off, even if the connector takes a hit.

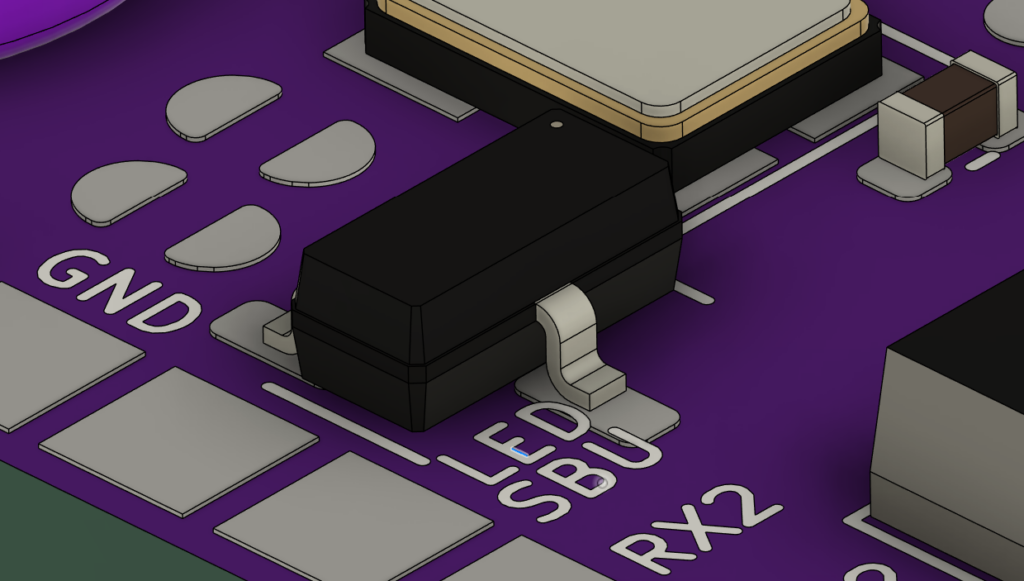

VTX Real Pit Mode
Are you a racer? It’s a hot day, you’re on the start line, waiting for the heat to begin—you know your VTX is at risk of overheating before the race even starts. No worries! With a real pit switch, your VTX stays completely powered off until the perfect moment. Plus, keeping it off until the start helps you save those precious milliamps from your LiPo, giving you every possible advantage on the track.
